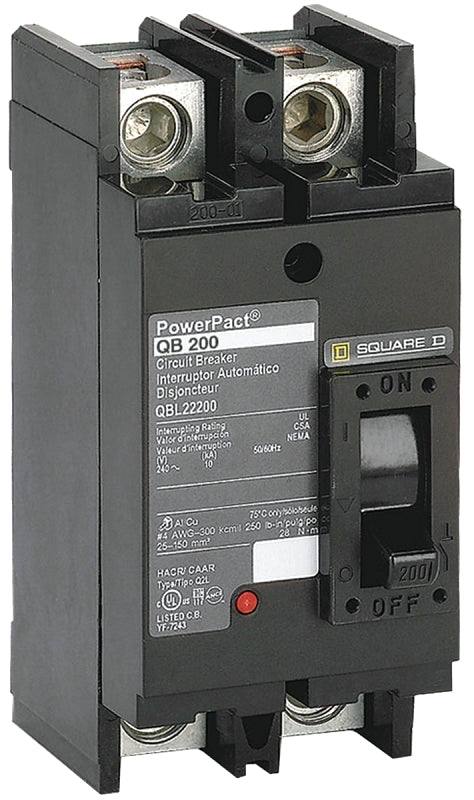

Square D QBL22200 Circuit Breaker, Type QBL, 200 A, 2-Pole, 240 V, Plug Mounting, Black
| Brand: | Square D |
| Model: | QBL22200 |
| UPC: | 785901412632 |
GO-6191845-785901412632
PowerPacT Q-Frame circuit breakers are used for overcurrent protection and switching on 240 VAC systems. They are rated for 240 VAC operational voltage and provide thermal magnetic trip protection. PowerPacT Q circuit breakers are available in 2 and three-pole unit mount and I-Line constructions. All PowerPacT circuit breakers have an integral push to trip button in the cover to manually trip the circuit breaker. This unit has lugs on both the line and load sides. This PowerPacT Q, 200 A, 2 pole, circuit breaker has an interrupting rating of 10 kA at 208Y/120 VAC and 240 VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT Q circuit breakers comply to UL, CSA and NOM standards and are IEC certified.
- Shielded copper bus bar
- Available in 1 and 3 ph
- Ground bar is included with all main lugs load centers with three mounting locations
- Convertible mains let you meet changing jobsite requirements
- Tangential main service knock outs
- Enclosure rotates for top or bottom feed to reduce service cable waste
- Qwik-open circuit breaker protection
- Exclusive Visi-Trip red indicator
- Quick-make - quick-break mechanism
- Plug-on design, easy-to-install
| Actuator Type: | Magnetic Thermal |
| Color: | Black |
| Current Rating: | 200 A |
| Dimensions: | 6.47 in H x 3.93 in W x 4.5 in D |
| Enclosure Type: | Q-Frame |
| Interrupt Rating: | 10 kA |
| Mounting Type: | Plug |
| Number of Phases: | 1 |
| Number of Poles: | 2 |
| Operating Frequency: | 50/60 Hz |
| Operating Temperature: | 104 to 158 deg F |
| Terminal Type: | Lug |
| Type: | Type QBL |
| Voltage Rating: | 240 V |
| Wire Size: | 4 AWG |
| Shipping Weight: | 3.626005 lb |
