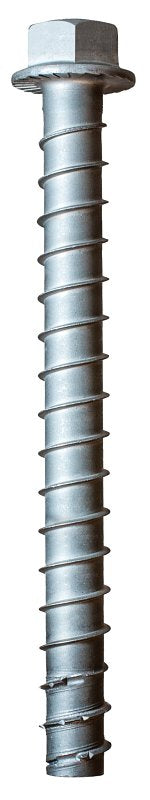

Simpson Strong-Tie 5/8" x 6" Strong-Tie THDB62600H4SSF1 Titen HD Screw Anchor, 304 Stainless Steel, Pkg 1
| Brand: | Simpson Strong-Tie |
| Model: | THDB62600H4SSF1 |
| UPC: | 707392003311 |
go7970544
The Titen HD stainless-steel screw anchor for concrete and masonry is ideal for when the job calls for fast and efficient installation in multiple types of environments. The Titen HD stainless steel is a state-of-the-art anchor solution that combines the long lasting corrosion-resistance of Type 300 Series stainless steel with the undercutting ability of heat-treated carbon-steel cutting threads.
- Qualified for static and seismic loading conditions
- Thread design undercuts to efficiently transfer the load to the base material
- No special drill bit required; designed to install using standard-sized ANSI tolerance drill bits
- Hex washer head requires no separate washer and provides a clean installed appearance
- The THDSS has an innovative carbon-steel thread that effectively cuts the concrete while significantly limiting the amount of carbon steel in the anchor; less carbon steel, less expansion
- Made from Type 304 stainless steel
- Caution: Use a Titen HD screw anchor one time only — installing the anchor multiple times may result in excessive thread wear and reduce load capacity
| Color: | Silver |
| Diameter: | 5/8 in |
| Drill Size: | 5/8 in |
| Drive Type: | 6-Lobe |
| Finish: | Zinc Plated |
| Head Type: | Hex |
| Length: | 6 |
| Material: | Stainless Steel |
| Minimum Concrete Thickness: | 6 to 8-1/2 in |
| Minimum Embedment Depth: | 4-1/2 in |
| Shear Strength: | 8000 lb |
| Tensile Strength: | 110000 psi |
| Thread Length: | 5-1/2 in |
Application: For cracked and uncracked concrete and masonry applications
Warranty: Limited
| Shipping Weight: | 1.085 lb |
