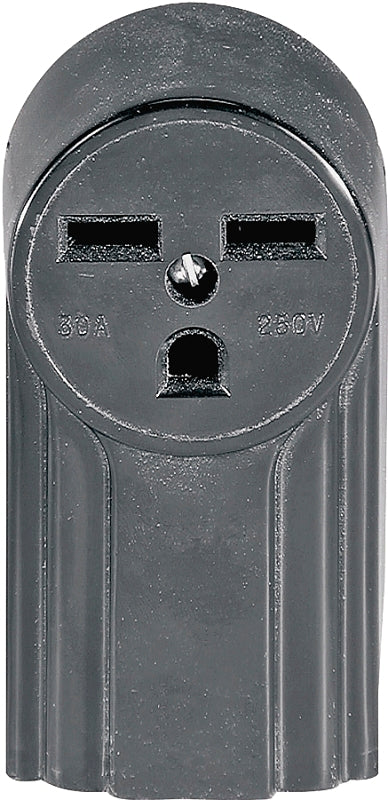

Eaton WD1232 30-Amp 2-Pole 3-Wire 240-Volt Surface Mount Power Receptacle, Black
| Brand: | Eaton Cooper Wiring |
| Model: | 1232 |
| UPC: | 032664306105 |
go6875025
Commercial and industrial power receptacles 30 A, 250 V NEMA 6-30 2-pole/3-wire. Heavy-duty design and construction make Arrow-Hart power devices ideal for any high amperage industrial or commercial power connectivity application.
- Flush receptacles feature heavy-gauge galvanized steel mounting strap and glass reinforced nylon body
- Patented lay-in terminals accept up to #4 AWG wire
- Back features concentric knockouts and an adjustable cord clamp to allow wiring from back or bottom
- Heavy-gauge galvanized steel mounting strap for corrosion resistance
- Flush receptacles fit one- or two-gang enclosures
- Surface receptacles have patented lay-in terminals that accept up to #4 AWG wire
- Surface receptacle backs feature concentric knockouts and an adjustable cord clamp to allow wiring from back or bottom
| Color: | Black |
| Current Rating: | 30 A |
| Dimensions: | 4-3/4 in L x 2-1/2 in W x 2-3/32 in D |
| Material: | Polypropylene |
| Mounting Type: | Surface |
| NEMA Configuration: | NEMA 6-30R |
| Number of Poles: | 2 |
| Number Of Wires: | 3 |
| Operating Temperature: | -20 to 75 deg C |
| Suitable for: | S42 Power Plug |
| Voltage Rating: | 250 V |
| Wire Size: | 10 to 4 AWG |
Application: For commercial applications
| Package Length: | 8" |
| Package Width: | 6" |
| Package Height: | 4" |
| Shipping Weight: | 1.07619 lb |
