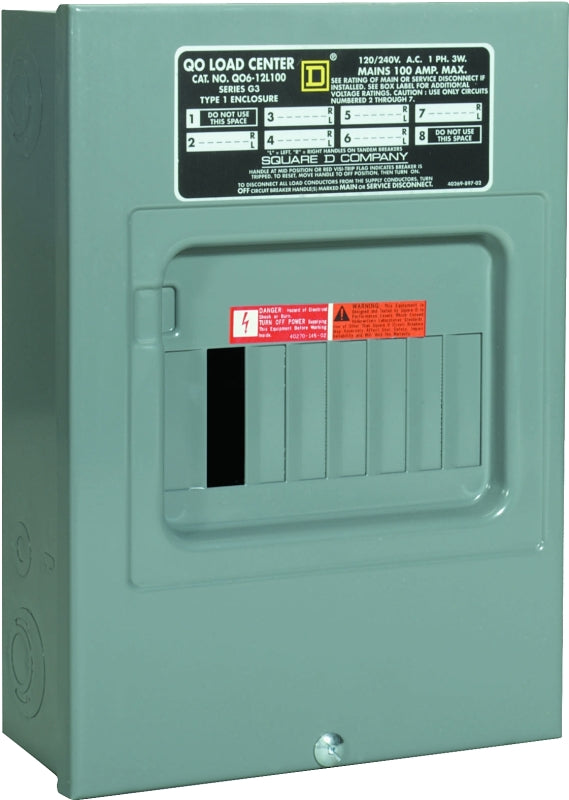

Square D Main Lug Load Center 100 Amp 6 Space 12 Circuits Boxed3

Main lug indoor load center, 100 A, 6 space/12 circuits. 1-1/2 in maximum knockouts in the top and bottom end walls for overhead or underground feed. NEMA type 1 for indoor use. Steel enclosure. Single-phase, solid neutral. UL listed.

• Indoor and outdoor versions
• Separate flush or surface mount covers
• Exclusive shielded copper bus features electro tin plated copper bus bars sandwiched between two rugged polymer shields to insulate and secure the interior
• Straight-in mains wiring and uniform termination lugs help minimize service cable bends, cutting waste and saving installation time
• Convertible mains allow fast field conversion between main breaker and main lugs to meet changing job requirements
• QO three-phase main circuit breaker panels can be field upgraded to provide 100 kA short circuit current ratings
• Single, captive interior mounting screw can't be lost. Interior mounts quickly and can easily be removed during rough-in for paint or theft protection
• Split branch neutral with up to 50% more terminations than UL requirement - simplifies wiring and reduces clutter
• Indoor enclosures designed to rotate 180 deg to accommodate top or bottom service entrance feed, saving expensive service cable
• Combination slot/square-drive neutral, ground and cover screw accommodate both standard flat blade screwdrivers and square-head drivers
