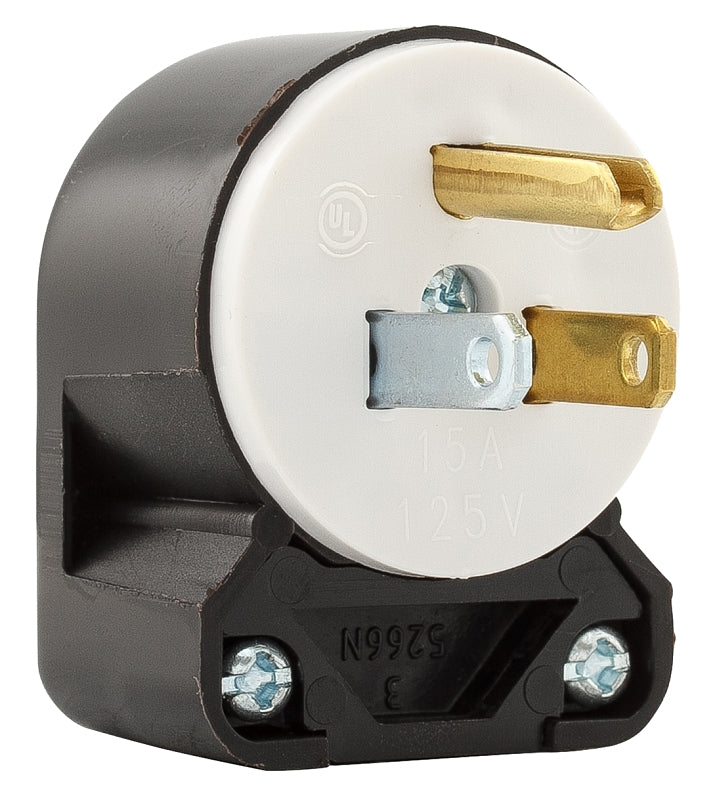

Cooper Wiring 5266 Industrial 3 Wire Plug, Black 5266AN
| Brand: | Eaton Wiring Devices |
| Model: | 5266AN |
| UPC: | 032664519512 |
go6269393
Industrial-grade. High impact-resistant thermoplastic housings with easy-grip grooves. Plated steel assembly screws are speed-threaded and captive, reducing installation time. Solid brass plug blades are firmly embedded in body. Clearly marked rating, NEMA configuration and standard compliances (third-party listing) on face of device. Color-coded clamps identify amperage - blue 15 A. Terminal screws backed out; ready for wiring. Combination slot/Phillips head terminal, assembly and clamping screws. Meets all 498 requirements. 15 A, 125 V. UL listed. NEMA 5-15.
- High impact-resistant thermoplastic housings with easy-grip grooves
- Assembly screws are speed-threaded and captive, reducing installation time
- Solid brass plug blades are firmly embedded in body
- Terminals in individual chambers to positively insulate conductors
- Clearly marked rating, NEMA configuration and standard compliances on face of device
- Terminal screws backed out ready for wiring
| Cable/Wire Size: | 1/4 to 11/16 in |
| Color: | Black/White |
| Current Rating: | 15 A |
| Dimensions: | 1.71 in L x 1.54 in W |
| Grounding Type: | Grounded |
| Material: | Thermoplastic |
| NEMA Configuration: | NEMA 5-15 |
| Number of Poles: | 2 |
| Number Of Wires: | 3 |
| Operating Temperature: | -40 to 70 deg C |
| Type: | Straight |
| Voltage Rating: | 125 V |
| Shipping Weight: | 0.45651 lb |
