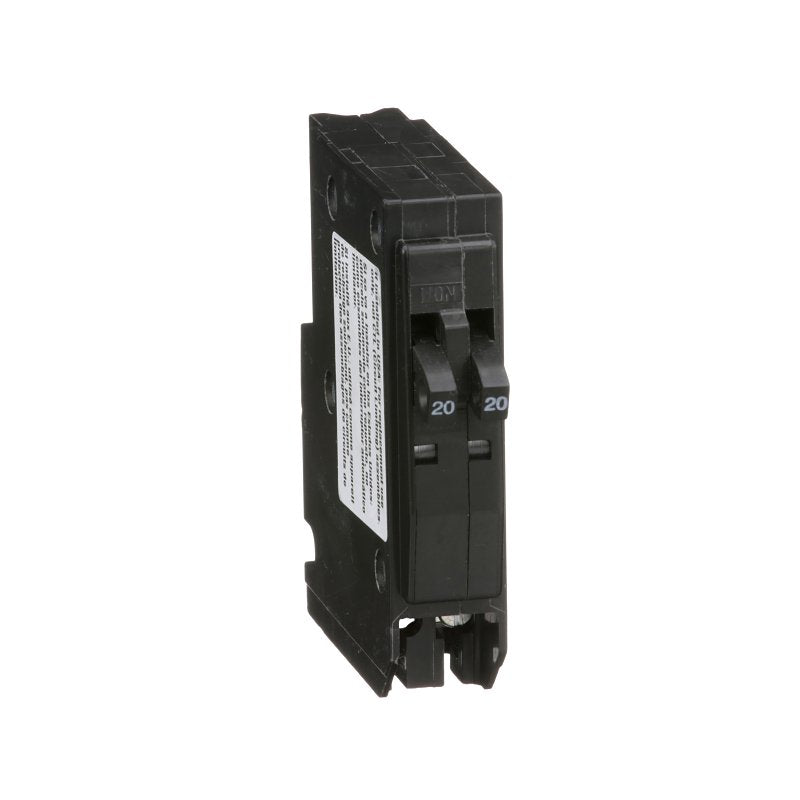

Square D by Schneider Electric QO2020CP QO 2-20-Amp Single-Pole Tandem Circuit Breaker
| Brand: | Square D |
| Model: | QO2020CP |
| UPC: | 047569008986 |
go5841564
The industry leader in circuit protection is easily recognized by the industry's only trip indicator. The red Visi-Trip™ Indicator makes it easy to spot a tripped circuit breaker. Compact 3/4 in wide format for one-pole circuit breakers helps minimize panel space and footprint. The Square D™ exclusive Qwik-Open™ protection is standard on all 15 A and 20 A circuit breakers trip reaction within 1/60th of a second. No other circuit breaker trips faster.
- Square D CAFI circuit breakers feature time saver diagnostics to help find circuit issues faster
- UL-listed and now available in QO single-pole circuit breakers with 15 and 20 A ratings
- Square D CAFI circuit breakers remember their last trip-ground fault, arc fault, overload and short circuit
- QO plug-on neutral CAFI circuit breakers are designed for use in QO plug-on neutral load centers
| Actuator Type: | Magnetic Thermal |
| Color: | Black |
| Current Rating: | 20 A |
| Dimensions: | 3.22 in H x 0.75 in W x 2.91 in D |
| Interrupt Rating: | 10 kA |
| Mounting Type: | Plug |
| Number of Phases: | 1 |
| Number of Poles: | 1 |
| Number Of Spaces: | 1 |
| Operating Frequency: | 50/60 Hz |
| Operating Temperature: | 104 deg F |
| Type: | Mini Tandem |
| Voltage Rating: | 120/240 V |
| Wire Size: | 14 to 18 AWG |
| Shipping Weight: | 0.2075 lb |
