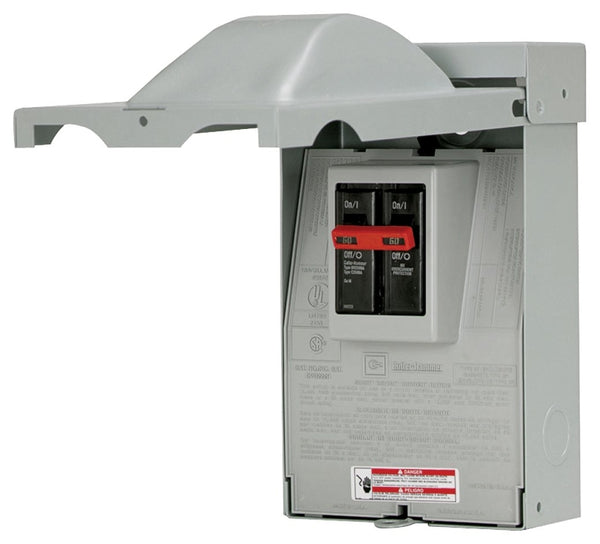

Eaton Corporation DPB222RP Non-Automatic Gray
| Brand: | Cutler-Hammer |
| Model: | DPB222RP |
| UPC: | 782114208250 |
go2101087
Air conditioning disconnect, molded case switch looks like a circuit breaker but operates like an ordinary household light switch. 60 A, 2-pole, 240 VAC. Metallic, galvanized steel enclosure, NEMA 3R, rainproof. Packaged for retail sale. Wire size range Cu or Al at 60 or 70 deg C, #14-3. UL listed, CSA approved.
- Rugged construction in a disconnect switch that looks like a circuit breaker but operates like an ordinary household light switch
- Plug-In switch eliminates the need for pullout handles
| Color: | Gray |
| Current Rating: | 60 A |
| Enclosure Material: | Steel |
| Height: | 3.5 in |
| HP Rating: | 10 hp |
| Length: | 5.3 in |
| Nema Rating: | NEMA 3R |
| Number of Phases: | 1 |
| Number of Poles: | 2 |
| Number Of Wires: | 2 |
| Type: | Non-Automatic |
| Voltage Rating: | 240 V |
| Wattage Rating: | 14400 W |
| Width: | 3.74 in |
Application: For outdoor applications
Warranty: 1 Year
| Shipping Weight: | 4.025 lb |
