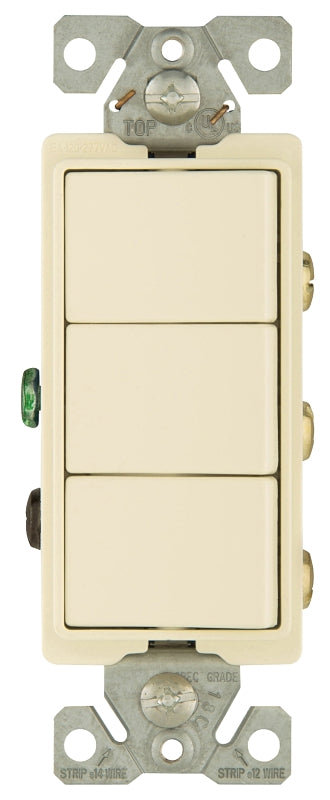

Eaton 7729LA-SP 15-Amp 3-Way 120-Volt Decorator Heavy Duty Grade Three Single-Pole Combination Switches, Light Almond
| Brand: | Eaton Cooper Wiring |
| Model: | 7729LA-SP |
| UPC: | 032664750397 |
go9023557
Commercial-grade - decorator combination switch/receptacle back and side wire feature the decorator design for easy, smooth actuation of the rocker panels. 120/277 VAC rating is ideal for incandescent or fluorescent lighting fixtures. Ultrasonic welding and integrated construction of the strap and body provide excellent ground integrity even under heavy use.
- Thermoplastic rocker, top and back body are virtually unbreakable to deliver years of durable performance
- Ultrasonic welding and integrated construction of the strap and body provide exceptional ground integrity even under heavy use
- Durable, injection molded housings and PVC resin comply with UL94 V0 flammability ratings
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure and provides redundant measure of ground continuity where jumper is used
- Steel mounting strap is zinc-plated for added corrosion resistance
- Back wire clamps on side terminals provide for easy installation of #12 and #14 AWG wire
- Terminal screws are backed out and ready for wiring to enhance ease of installation
- Break-off provision on switches for wiring both devices on the same circuit or on separate circuits
- Triple-wipe blade contacts and double-wipe ground contacts to insure long-term plug retention
| Color: | Light Almond |
| Current Rating: | 15 A |
| Dimensions: | 1.08 in D x 4.19 in H |
| Material: | PVC |
| Number of Poles: | 1 |
| Operating Temperature: | -20 to 60 deg C |
| Suitable for: | Incandescent/Fluorescent Lighting Fixtures |
| Terminal Type: | Screw |
| Type: | Duplex |
| Voltage Rating: | 120/277 V |
| Wire Size: | 14 to 12 AWG |
| Wiring Type: | Back and Side |
Application: For commercial applications
| Package Length: | 4" |
| Package Width: | 2" |
| Package Height: | 2" |
| Shipping Weight: | 0.41682 lb |
