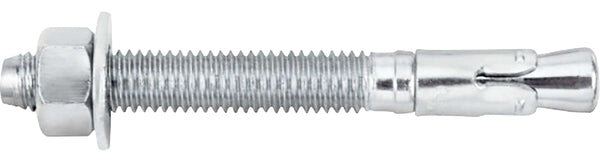

Dewalt Powers Fastening Innovations 7404SD1 Power-Stud and Sd1 1/4-Inch by 3-1/4-Inch Type Carbon Steel Wedge Expansion Anchor Carbon Steel Clip, 100 Per Box 7404SD1-PWR
| Brand: | DEWALT |
| Model: | 7404SD1-PWR |
| UPC: | 075352775913 |
go4593265
The Power-Stud® Plus SD1 anchor is a fully threaded, torque-controlled, wedge expansion anchor which is designed for consistent performance in cracked and uncracked concrete. Suitable base materials include normal weight concrete, sand lightweight concrete, concrete over steel deck and grouted concrete masonry. The anchor is manufactured with a zinc-plated carbon steel body and expansion clip for premium performance. Nut and washer are included.
- Consistent performance in high and low strength concrete
- Anchor can be installed through standard fixture holes
- Anchor design allows for follow-up expansion after setting under tensile loading
- Nominal drill bit size is the same as the anchor diameter
- Length ID code and identifying marking stamped on head of each anchor
| Diameter: | 1/4 in |
| Finish: | Zinc |
| Includes: | (100) Wedge Anchors |
| Material: | Carbon Steel |
| Maximum Work Thickness: | 1-7/8 in |
| Minimum Embedment Depth: | 1-1/8 in |
| Overall Length: | 3-1/4 in |
| Shear Strength: | 1255 lb |
| Tensile Strength: | 1435 lb |
| Thread Length: | 2-1/4 in |
| Thread Size: | 1/4-20 |
| Thread Type: | UNC |
Application: For structural connections, safety-related attachments, interior applications, seismic and wind loading and tension zone applications
| Shipping Weight: | 5.305 lb |
