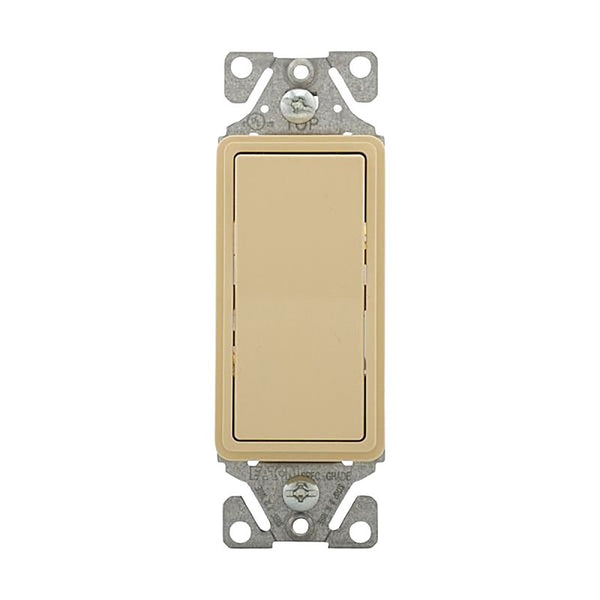

Cooper Eaton Wiring Device 7503V Wall Plates, White
| Brand: | Eaton |
| Model: | 7503V |
| UPC: | 032664627682 |
go7655756
Eaton 7503 3-Way Decorator Rocker Switch, 120/277 V, 15 A, 60 Hz Frequency, 1 ph, 1 Pole, 3-Way Contact Configuration, 2000 V Dielectric Strength, Back Wire, Push Wire, Screw Terminal, -31 to 150.8 deg F, Flush Mounting, Nylon/PVC/Thermoplastic Housing Material, Ivory, Dimensions: 1.44 in L x 0.97 in W x 4.19 in H
- Thermoplastic rocker, top and backbody are virtually unbreakable, promising years of durable performance
- Ultrasonic welding and integrated construction of the strap and body provide great integrity
- Backwire clamps on the side terminals provide for easy installation of #12 and #14 AWG wire
- Push-in terminals accept #14 AWG solid wire
- Stippled ground screw terminal standard
- 120/277 VAC rating ideal for fluorescent lighting fixtures and a broad variety of applications
- Long, broad mounting strap virtually eliminates floating installations
- Patented built-in wire stripper for #12 and #14 AWG wire to speed installation
- Tri-combo screws accept slotted, Philips and Robertson head tools for installation flexibility
- Lighted switches glow in "Off" position
| Color: | Ivory |
| Contact Configuration: | 3-Way |
| Current Rating: | 15 A |
| Dielectric Strength: | 2000 V |
| Dimensions: | 1.44 in L x 0.97 in W x 4.19 in H |
| Frequency Rating: | 60 Hz |
| Housing Material: | Nylon/PVC/Thermoplastic |
| Mounting Type: | Flush |
| Number of Phases: | 1 |
| Number of Poles: | 1 |
| Temperature Rating: | -31 to 150.8 deg F |
| Terminal Type: | Back Wire Push Wire Screw |
| Voltage Rating: | 120/277 V |
| Shipping Weight: | 0.42780358 lb |
