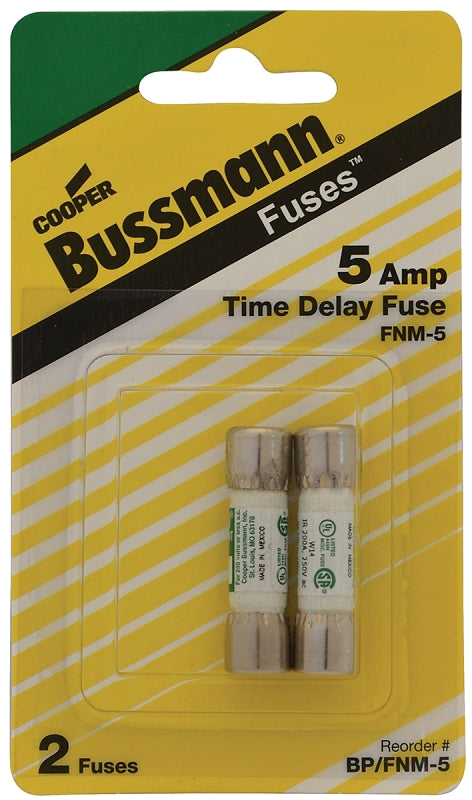

Bussmann FNM Series BP/FNM-5 Fuse, 5 A, 250 V, 10 kA Interrupt, Fiber Body, FNM, Low Voltage, Time Delay Fuse
| Brand: | Bussmann |
| Model: | BP/FNM-5 |
| UPC: | 051712751674 |
GO-3729605-051712751674
Provides supplemental protection to industrial, commercial, agricultural, heating, ventilating and air conditioning equipment. Used to protect internal components such as control circuit wiring, motor control transformers and small motors. 250 V maximum, 13/32 x 1-1/2 in.
- Color-coded green for 250 VAC maximum voltage rating
| Additional Information: | Nickel-Plated Contact Finish |
| Body Material: | Fiber |
| Color: | Green |
| Contact Material: | Bronze |
| Current Rating: | 5 A |
| Diameter: | 13/32 in |
| Element Type: | Dual |
| Fuse Group: | FNM |
| Fuse Type: | Low Voltage Time Delay |
| Indicator Type: | Non-Indicating |
| Interrupt Rating: | 10 kA |
| Length: | 1-1/2 |
| Rejection/Non-Rejection: | Rejection |
| Terminal Type: | Ferrule |
| Voltage Rating: | 250 V |
Application: For circuits with high-inrush currents, supplemental protection for inductive circuits
| Shipping Weight: | 0.207345 lb |
